To Create Value For Customers. Integrity and Win-Win.

|
| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE,CCC |
| Model Number: | JP100F |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | suitable for export ( carton) |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 1000pcs/month |
| Model: | JP100F | Material: | PPS+GF, Stainless |
|---|---|---|---|
| Voltage: | DC12V/24V | Power: | 80~100W |
| Color: | Chanpagne,black | ||
| Highlight: | 12V/24V Electric Water Pump,100W Electric Water Pump,JP100F Electric Water Pump |
||

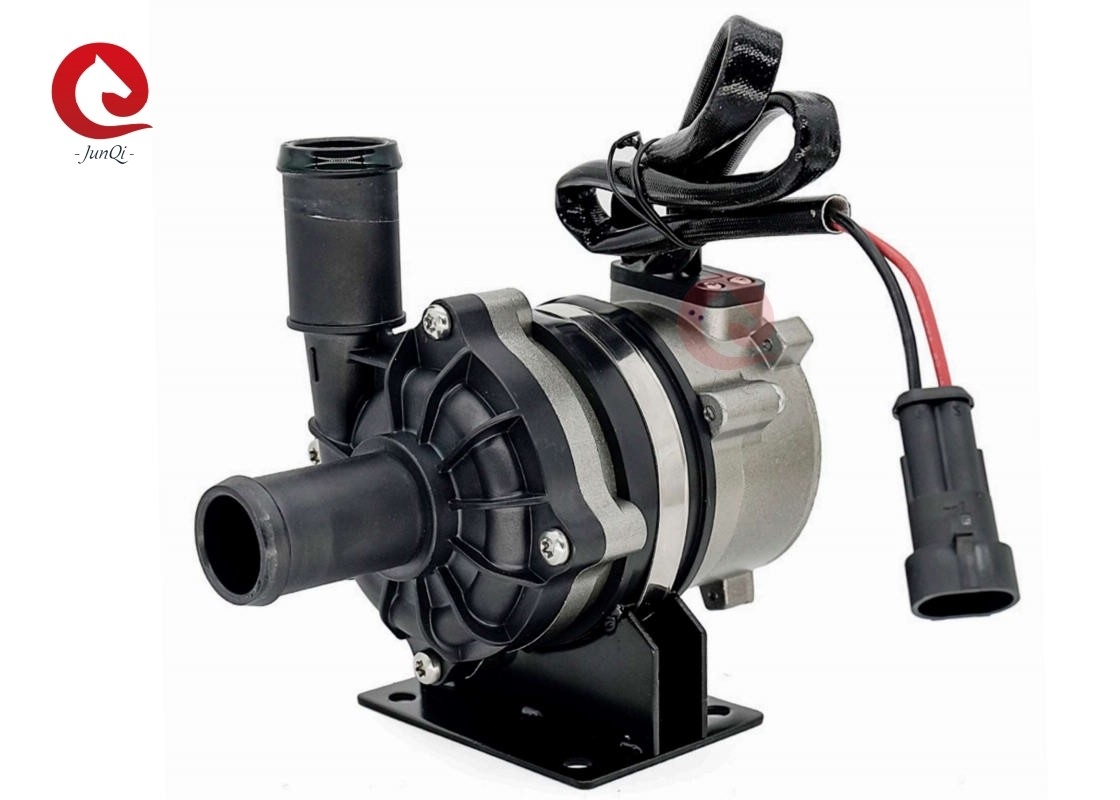

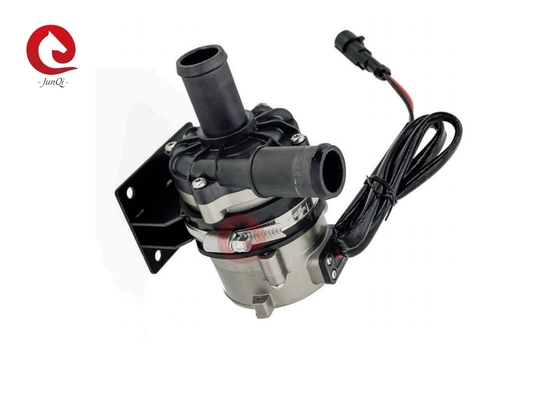

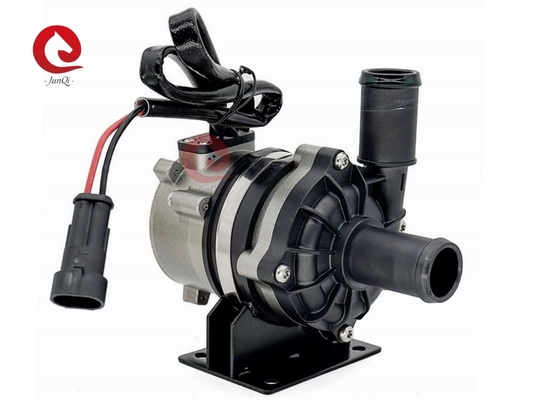

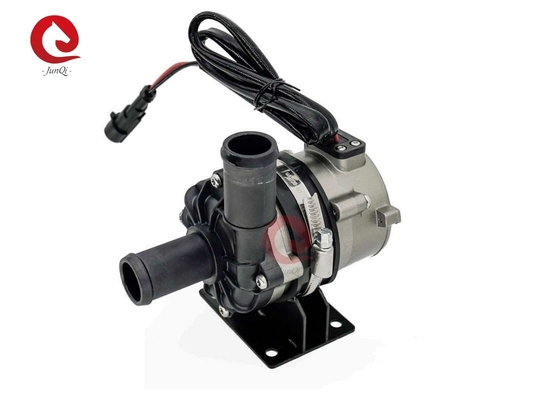

Junqi JP100-12V Series Electric Water Pump For EV Car Cells Cooling System
Water pump Techincal Paramters:
| Pump Series No. | JP100F-12V | JP100F-24V |
| Brand | Junqi | |
| Rated Voltage (V) | 12VDC | 24V |
| Vorking Voltage Range (V) | DC9~16V | DC18~32V |
| Rated Current (A) | 8.5A | 4.2A |
| Rated Power (W) | 100W | 100W |
| Rated Working Head H(m) | ≥8m | ≥8m |
| Rated Flow Rate (L/h) | 1800L/h | 1800L/h |
| Inlet/Outlet (mm) | Ø25 | Ø25 |
| Woring Environment Temperature (℃) | -40℃~105℃ | -40℃~105℃ |
| Working Medium | 50% glycol aqueous solution | |
| Protection Level | IP68 | |
| Working Noise | ≤45dB ( Distance 1m) | |
| Working Life | ≥20000h | |
| Weight | 1.2kg | |
Features:
1. Flexible start protection, slow start;
2. Adopt brushless motor with speed regulation and PWM duty cycle to control different running speed and reduce power output;
3. Fault feedback protection;
4. Overvoltage and undervoltage protection;
5. Blocking protection;
6. Low noise
External dimensions:
H-Q Performance Curve:
BLDC Electric Water Pump Advantages:
The Electric Water Pumps is mainly consist of pump head, impeller and brushless motor, and has compact structure and light weight. Its operating principle is that the impeller is mounted on the rotor of the motor, the rotor and stator are separated by a shielding sleeve, and the heat generated by the motor can be derived through the cooling medium. Therefore, its working environment is highly adaptable and can adapt to ambient temperature of -40℃～100℃, with a service life of more than 20000 hours.
This water pump is specially designed for automotive cooling system.
Warehouse view:
