| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | CE |
| Model Number: | JQ42STH47-1804AF |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | 5-10usd |
| Packaging Details: | CTN |
| Payment Terms: | T/T, paypal |
| Supply Ability: | 1000pcs per month |
| Phase: | 2 Phase | Step Angle: | 1.8° |
|---|---|---|---|
| Current/Phase: | 1.8A | Holding Torque: | 0.55N.m |
| Shaft Dia: | 5mm | Color: | Black |
| Shaft Type: | Single Shaft | Shape: | Square |
| Highlight: | 0.55N.m Nema17 stepper Motor,1.8A Nema17 stepper Motor,1.8A Nema17 Stepper Motor |
||

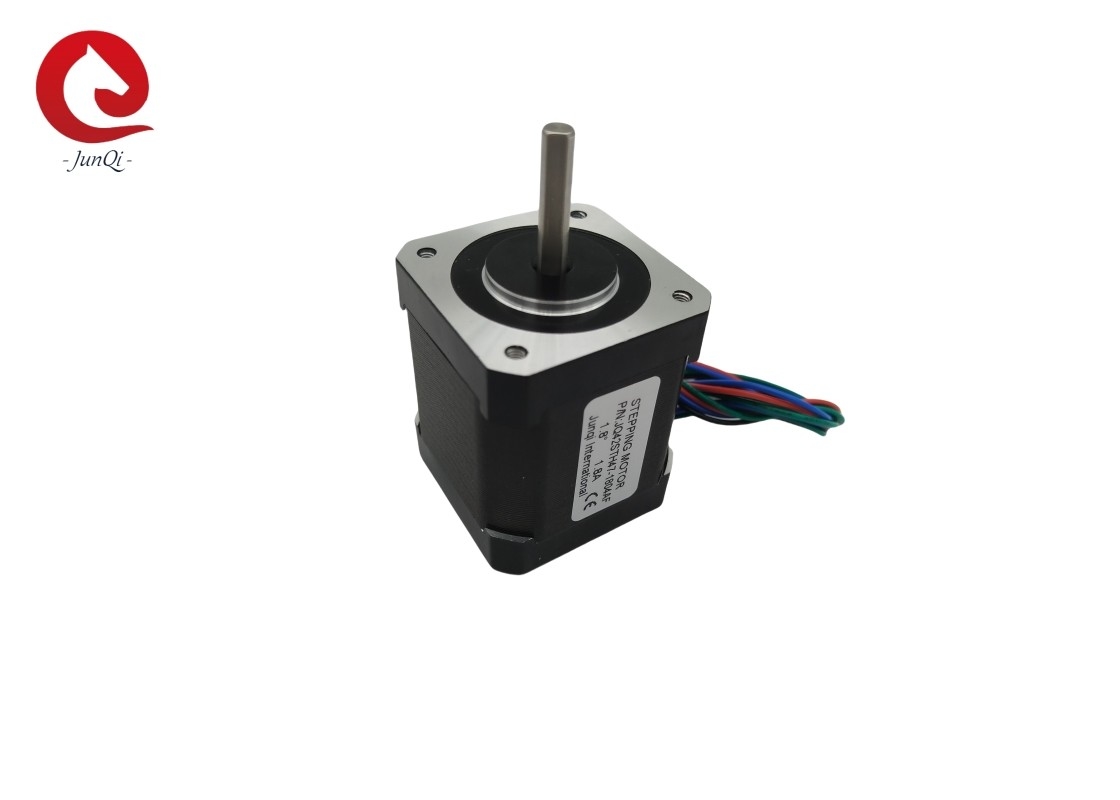

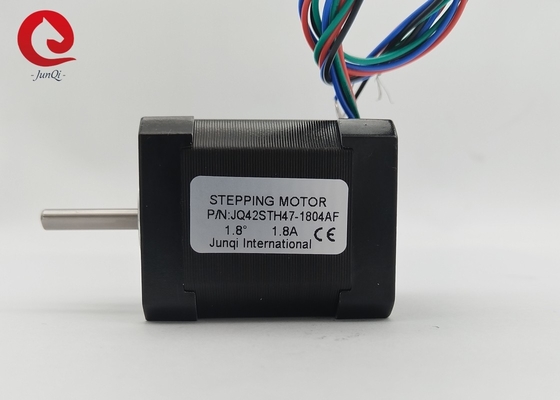

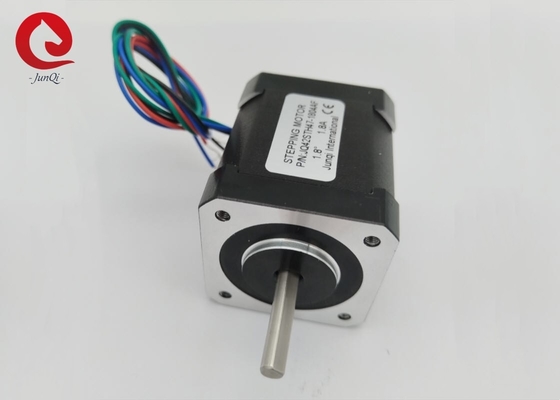

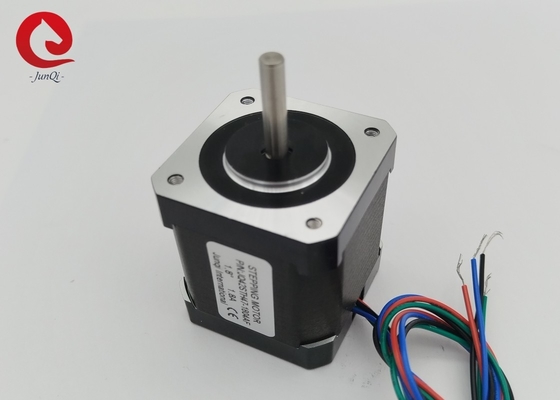

2-Phase Nema17 stepper motor, 47mm body length, 1.8A,0.55N.m For Engraving Machine
Motor Specification:
| Number of Phase | 2 |
| Step Angle(°) | 1.8 |
| Current/Phase (A) | 1.8 |
| Resistance/Phase (ohms @20℃) | 1.75±15% |
| Inductance/Phase (mH@1KHz) | 3.3±20% |
| Holding Torque (Nm) | 0.55 |
| Detent Torque (N.m) | 0.022 |
| Dielectric Strength | AC500V/1min/5mA Max. |
| Insulation Class | B (130℃) 80K Max. |
| Weight | 0.38 |
Motor Dimension:
Exciting Sequence vs Direction of Rotation:
Wiring Diagram:
Applications:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
