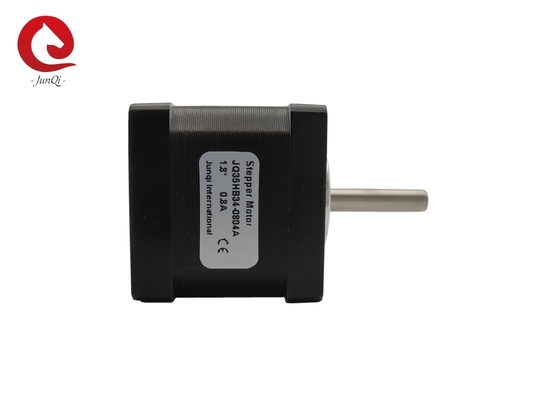

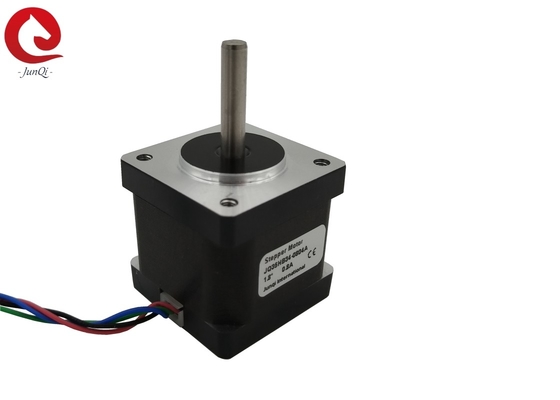

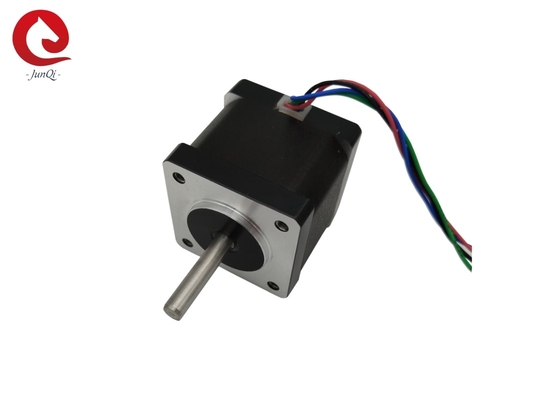

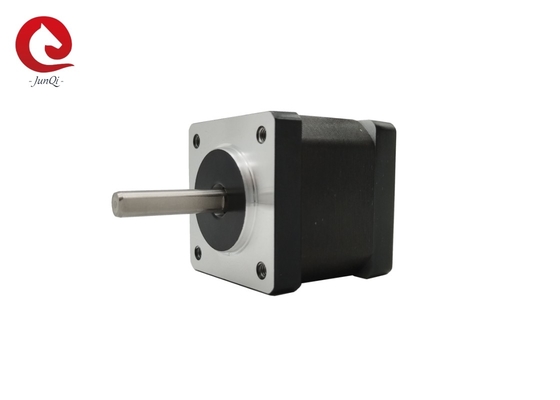

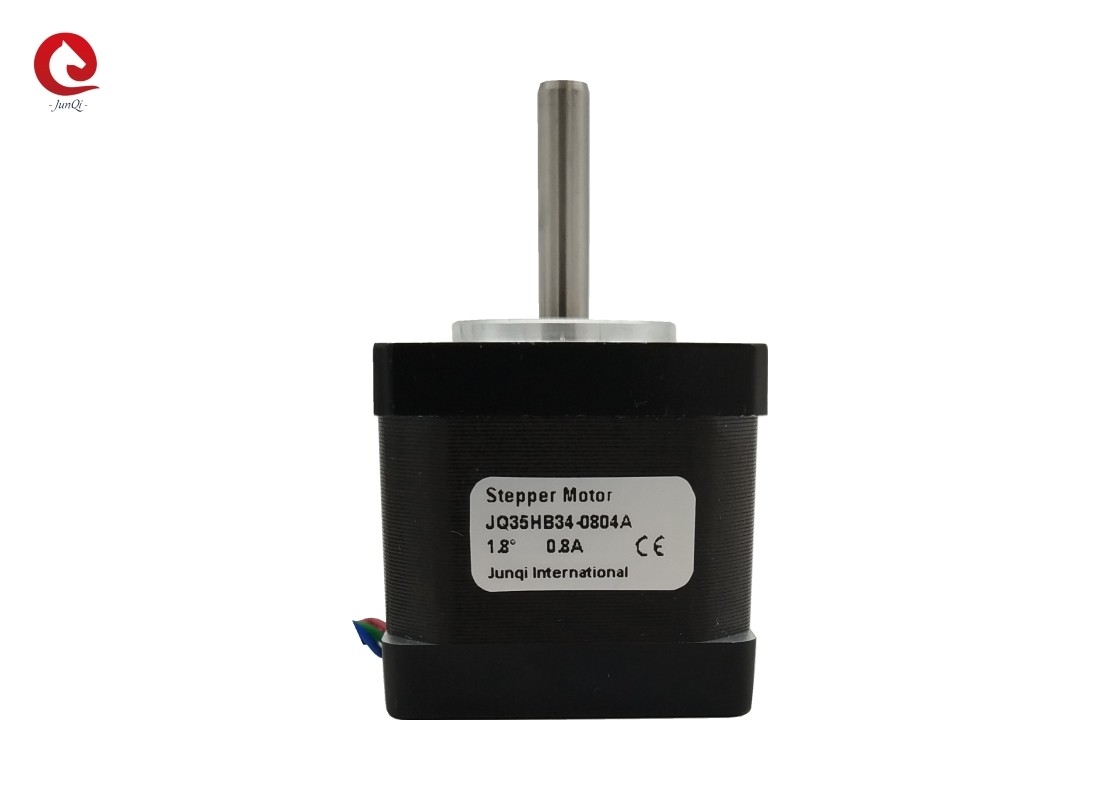

JUNQI Nema14(35mm) 2Phase Stepper Motor JQ35HB34-0804A 4-leads wires 18N.cm For 3D Printer

Product Details:

Place of Origin:	China
Brand Name:	Junqi
Certification:	TS16949,ISO9001, ISO14001,CE, ISO14001
Model Number:	JQ35HB34-0804A
Document:	JQ35HB34-0804A.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs ( sample available)
Price:	USD6-USD9.9/PC
Packaging Details:	Suite for export
Delivery Time:	depend on the order quantity /Negotiable
Payment Terms:	T/T, , Western Union, Paypal
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Model No.:	JQ35HB34-0804A	Type:	2Phase Stepper Motor
Current:	0.8 A	Holding Torque:	18N.cm
Length:	34mm	Warranty:	12 Months
Shaft Diameter:	5mm	Frame Size:	NEMA14 (35mm)
Application:	3D Printer
Highlight:	35mm Nema14 Stepper Motor , 18N.cm Nema14 Stepper Motor

JUNQI Nema14(35mm) 2Phase Stepper Motor JQ35HB34-0804A 4-leads wires 18N.cm For 3D Printer

Electrical Parameters:

Model	JQ35HB34-0804A
Step Angle	1.8°
Current/Phase	0.8A
Voltage/Phase	6.4V
Resistance/Phase	8Ω
Inductance/Phase	10mH
Holding Torque	18N.cm
Rotor Inertia	22g.cm²
Detent Torque	1N.cm
Motor Length	34mm
Lead Wires	4 no.
Weight	170g

Dimensions(mm)

Wires Connection:

JUNQI Nema14(35mm) 2Phase Stepper Motor JQ35HB34-0804A 4-leads wires 18N.cm For 3D Printer 1

Our Service:

1. We have more than 12 years experience in solenoid valves

2. Excellent quality control is one of our main principles

3. Various style for each products and completely series pneumatic products for you to choose from

4. Sample order & small quantity order is ok

5. We provide OEM service, accept customer label, develop the product with your drawings or samples

6. Any question, will be replyed within 24 hours

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.

Company file:

Changzhou Junqi International. located in Changzhou city close to Shanghai of China, specialized in acting as produce Hybrid Stepper Motors and its drivers, also agent spindle motor,servo motor, brushless dc motor, related drivers, swith power supply and Accessoriesetc. We accept OEM and ODM orders!

Our main products include from size Nema8, Nema11, Nema14, Nema16, Nema17, Nema23, Nema24, Nema34, Nema42, Nema52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.

Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.

We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.
