To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | Junqi |
| Certification: | CE, RoHs, REACH |
| Model Number: | 42HS Series Stepper Motor |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD20.77/pc |
| Packaging Details: | CTN |
| Delivery Time: | 4weeks after get payment (base on order), |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000set/month |
| Type: | Stepper Motor | Model Number: | 42HS Series |
|---|---|---|---|
| Frame Size: | 42mm | Step Angle: | 1.8° |
| Body Length: | 29mm/34mm/40mm/48mm/52mm/60mm | Shape: | Square |
| Highlight: | 2Phase Nema17 Stepper Motor,42CM06D Nema17 Stepper Motor,3D Printer Nema17 Stepper Motor |
||

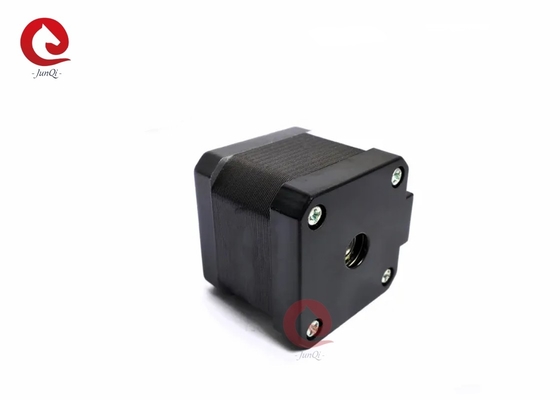

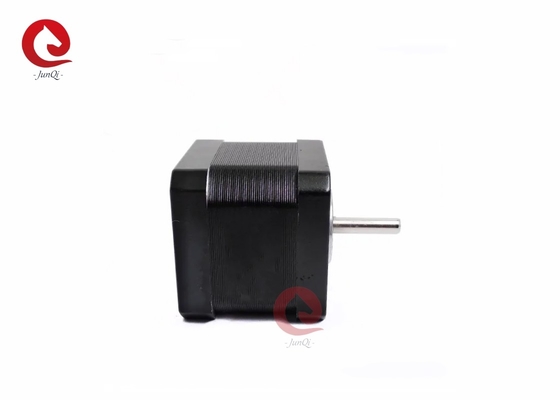

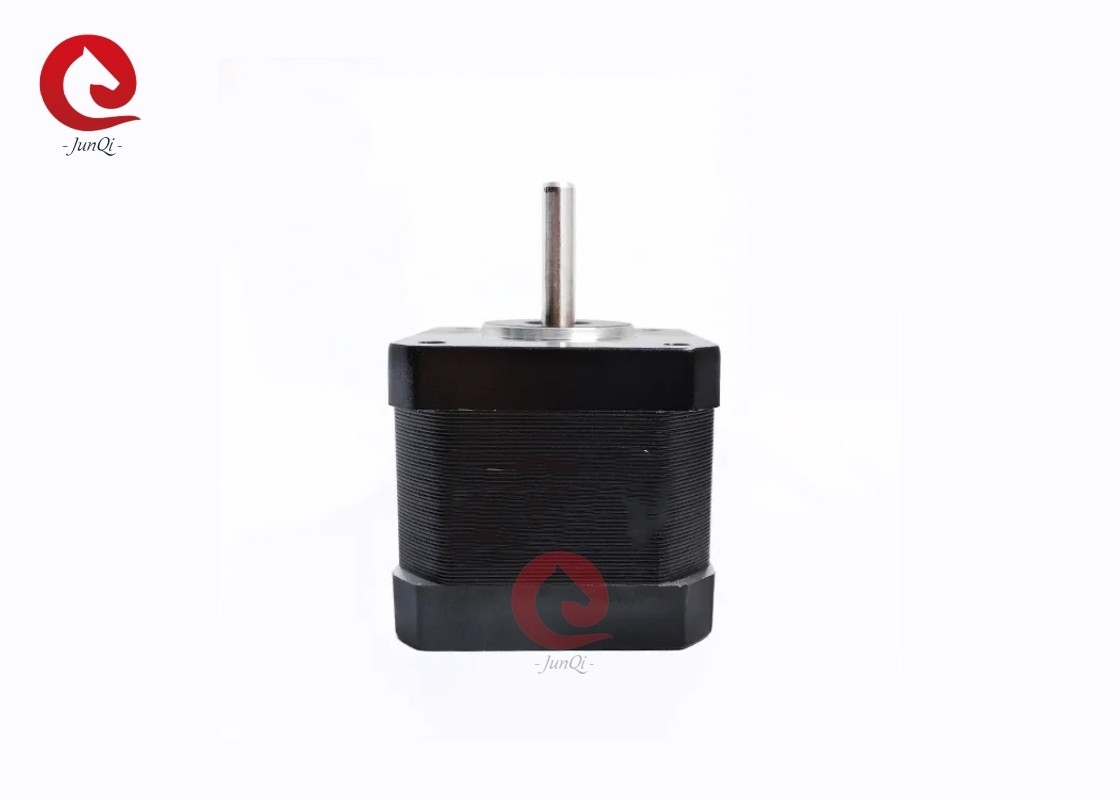

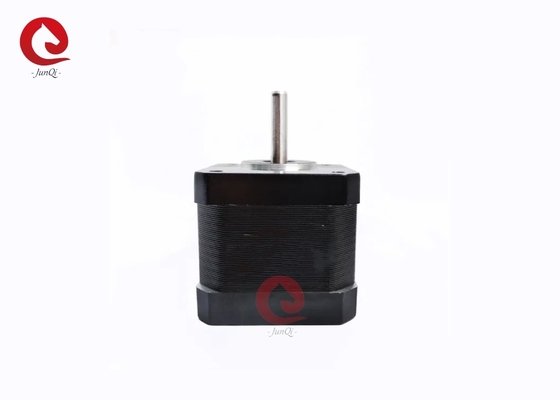

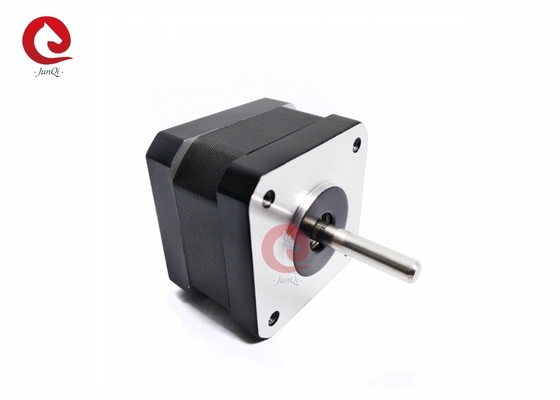

Nema17 2Phase 1.8° 42HS Series Hybrid Stepper Motor 3D Printer Motor For Engraving Milling Machine
General Specification:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Insulation Resistance | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
Electrical Specifications:
| Model No | Step Angle (°) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (Kg.cm) |
Detent Torque (g.cm Max) |
Rotor Inertia (g.cm²) |
Motor Length (mm) |
Leads No. | Motor Weight (Kg) |
| JQ42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | 0.16 |
| JQ42HS34-0306 | 1.8 | 10.3 | 0.3 | 34.2 | 25.5 | 2.2 | 200 | 34 | 34 | 6 | 0.22 |
| JQ42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| JQ42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| JQ42HS40-0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| JQ42HS40-0806 | 1.8 | 6.0 | 0.8 | 7.5 | 6.7 | 2.8 | 220 | 54 | 40 | 6 | 0.28 |
| JQ42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| JQ42HS40-1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |
| JQ42HS48-0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 80 | 52 | 4 | 0.45 |
| JQ42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | 0.55 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||||
Mechanical Size:
Motor Wiring Diagram:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Professional Factory:
Certificate Photos :
Motor Application Fields:
stepper motor and Stepping Motor Driver are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
FAQ:
Q: How long is the lead time of orders?
A: Lead time : 4 weeks after receive the deposit
Q: What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q: Do You Make Customized Product?
A: Yes,We Accpet IT.
Q: About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q: What is the payment term?
A: T/T and Paypal is used more,please contact us for details
Q: What is the quality level of your product?
A: We produce good quality, refuse to produce low quality.
Our motor products contain range:
