| Place of Origin: | China |
| Brand Name: | JUNQI |
| Certification: | IS9001, TS16949,CE |
| Model Number: | DKB80-24V-4Pin |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton+packing foams |
| Delivery Time: | Negotiable |
| Supply Ability: | 300sets per day |
| Product Name: | Brushless DC Motor Water Pump | Voltage: | 24VDC |
|---|---|---|---|
| Max Flow: | 40L/M | Max Head: | 11M |
| Power: | 78W | IP Level: | IP67 |
| Structure: | Single-stage Pump | Motor: | Brushless Motor |
| Application: | EV Bus, EV Truck, Electric Vechiles, Industry Equipment | ||
| Highlight: | 40LPM Flow Car Coolant Pump,Head 11m DC Electric Water Pump,Car Coolant Pump 80W 24V |
||
40LPM Flow Car Coolant Pump 80W 24V Head 11m DC Electric Water Pump, With PWM Control For EV Truck
Features:
DKB80-12V-4Pin electronic water pump is a low energy consumption and high efficiency water pump launched by our company. The characteristics of this pump are: small size, light weight, compact structure, wide application environment, and platform development design
Specifications:
1. Rated Voltage: 24VDC, Working voltage range: 18-32VDC
2. Rated Power: 78W
3. Rated working state: When pump head=5m, the flow rate≥1.t/h, the current≤3.5A
4. Max Head: ≥11m
5. Storage temperature:-40℃~100℃
6. Working ambient temperature: -40℃~100℃
7. Medium: Antifreeze
8. Service life: ≥20000h
9. Protection level: IP67
10. Noise: less than 50dB ( test from 1m distance)
Water Pump Size Diagram:
H-Q Curve:
PWM control chart:
PWM Duty Cycle Description:
| Duty Cycle(%) | Description |
| 0%≤Duty＜5% | Default Output(Max Speed) |
| 5%≤Duty＜15% | PWM Mode, halt command |
| 15%≤Duty＜85% | PWM Mode, Linear Speed Regulation range |
| 85%≤Duty＜100% | PWM Mode, Speed limited(Max speed) |
|
Remarks: PWM duty cycle error range:±2% PWM voltage: DC12V PWM frequency: 1KHz Notes: A: Recommended 10% duty cycle as the stop command B: Recommended 0%,95% duty cycle as default output mode (Max speed, PWM disable) |
|

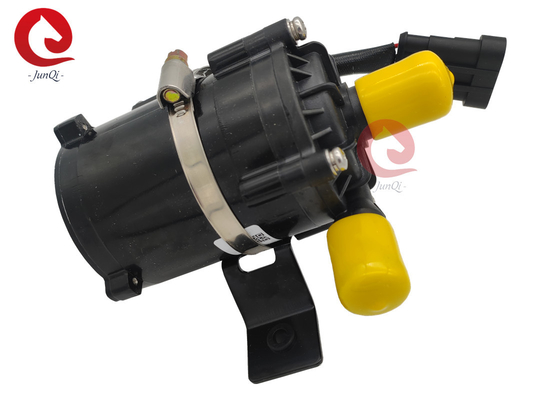

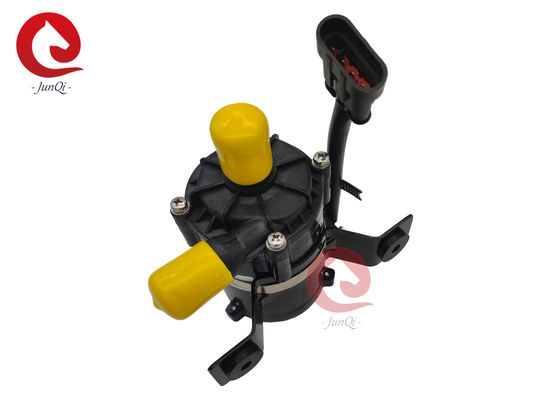

Electrick water pump pictures:
