To Create Value For Customers. Integrity and Win-Win.

|
| Place of Origin: | China |
| Brand Name: | JUNQI |
| Certification: | IS9001, TS16949,CE |
| Model Number: | JQ-P6202-2pin |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton+packing foams |
| Supply Ability: | 300sets per day |
| Product Name: | Brushless DC Motor Water Pump | Max Flow: | 22L/M |
|---|---|---|---|
| Max Head: | 11M | Material: | PK+GF |
| Structure: | Single-stage Pump | Power: | Electric |
| Motor: | Brushless Motor | Technical Support: | Yes |
| Highlight: | IP67 DC Booster Pump,Brushless Motor DC Booster Pump,24V Filling Water Pump |
||
Applications:
Features:
◆ Centrifugal pump
◆ Magnetic force transmission (shield pump structure)
◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆ With wide range operating temperature
◆ PWM signal speed controlling(Optional)
◆ With constant flow controlling(optional)
◆ Reverse polarity protection (optional)
◆ Dry running protection (optional)
◆ Over Voltage, over current protection
◆ Overload, over temperature protection
Technical parameters:
| Model | JQ-P6202-2pin |
| Rated Voltage | 24VDC |
| Rated Power | 55W |
| Max flow Rate | 22L/min |
| Max Head | 11m |
| Waterproof Grade | IP67 |
Water Pump Function:
1. Soft Start
2. Stall protection
3. Over temperature protection
4. Dry-run protection
Wire Connection Description:
Red wire: DC24 +
Black wire: DC24V-
Water Pump size diagram:

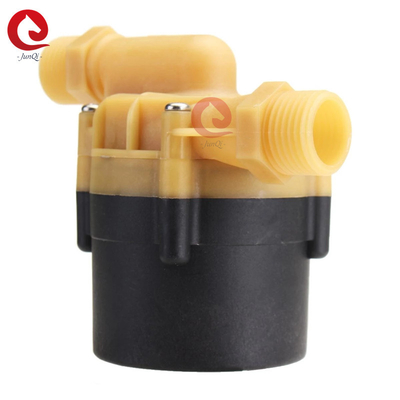

Water Pump pictures:
