| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE,CCC |
| Model Number: | JP100-12V Series |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | suitable for export ( carton) |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 1000pcs/month |
| Model: | JP100-12V Series | Material: | PPS+GF, Stainless |
|---|---|---|---|
| Voltage: | DC12V | Power: | 80~100W |
| Color: | Chanpagne,black | ||
| Highlight: | Electric bldc pump 12v,EV Car Cells bldc pump 12v,Cooling System bldc pump 12v |
||

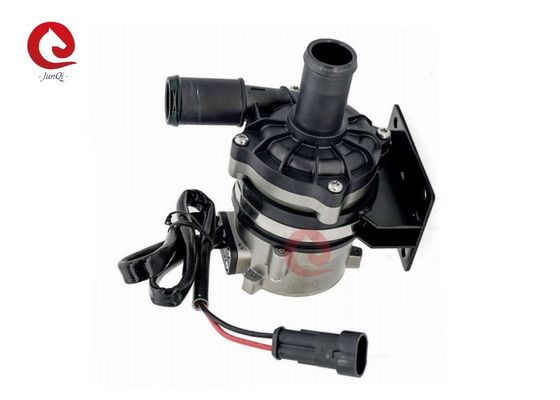

Junqi JP100-12V Series Electric Water Pump For EV Car Cells Cooling System
Water pump Choice:
| Pump Series No. | JP100-12V Series |
| Brand | Junqi |
| Voltage (V) | 12VDC |
| Range of lift H(m) | 2~10m |
| Recommended flow range (L/h) | 800~2000L/h |
| Inlet/Outlet (mm) | Ø20/Ø25/Ø38 |
| Regulating speed / Constant speed | Optional |
| Input power (W) | 80~100W |
| Communication mode | PWM |
| PIN needle | 2/3/4 |
| Install | clamp/base |
Features:
1. Flexible start protection, slow start;
2. Adopt brushless motor with speed regulation and PWM duty cycle to control different running speed and reduce power output;
3. Fault feedback protection;
4. Overvoltage and undervoltage protection;
5. Blocking protection;
6. Low noise
Technical parameters:
1. Rated voltage: DC12V
2. Operating voltage: DC9-16V
3. Working environment: -40℃~85℃
4. Working medium: 50% glycol aqueous solution ( preferably organic type,particle≯0.35,content≯0.1g/L)
5. Protection level: IP68
6. Working noise: ≤45dB
7. Working life: ≥20000h
8. Weight: 0.95kg( without bracket)
9. Protection function: Blocking, reverse connection, undervoltage, overvoltage, overcurrent, idling, overtemperaure protection.
External dimensions:
H-Q Performance Curve:
BLDC Electric Water Pump Advantages:
The Electric Water Pumps is mainly consist of pump head, impeller and brushless motor, and has compact structure and light weight. Its operating principle is that the impeller is mounted on the rotor of the motor, the rotor and stator are separated by a shielding sleeve, and the heat generated by the motor can be derived through the cooling medium. Therefore, its working environment is highly adaptable and can adapt to ambient temperature of -40℃～100℃, with a service life of more than 20000 hours.
This water pump is specially designed for automotive cooling system.
