| Place of Origin: | China |
| Brand Name: | Junqi |
| Certification: | TS16949,ISO9001, ISO14001,CE, RoHs |
| Model Number: | JQ42HS40-1684 |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD5-USD8/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 10000pcs per month |
| Model No.: | JQ42HS40-1684 | Type: | 2 Phase Stepping Motor |
|---|---|---|---|
| Size: | 42mm | Nema: | 17 |
| Body Length: | 40mm | Current/Phase: | 1.68A |
| Holding Torque: | 4.0kg.cm | Shaft Diameter: | 5mm |
| Highlight: | 42mm hybrid stepper motor,2.4A hybrid stepper motor,0.196N.m hybrid stepper motor |
||

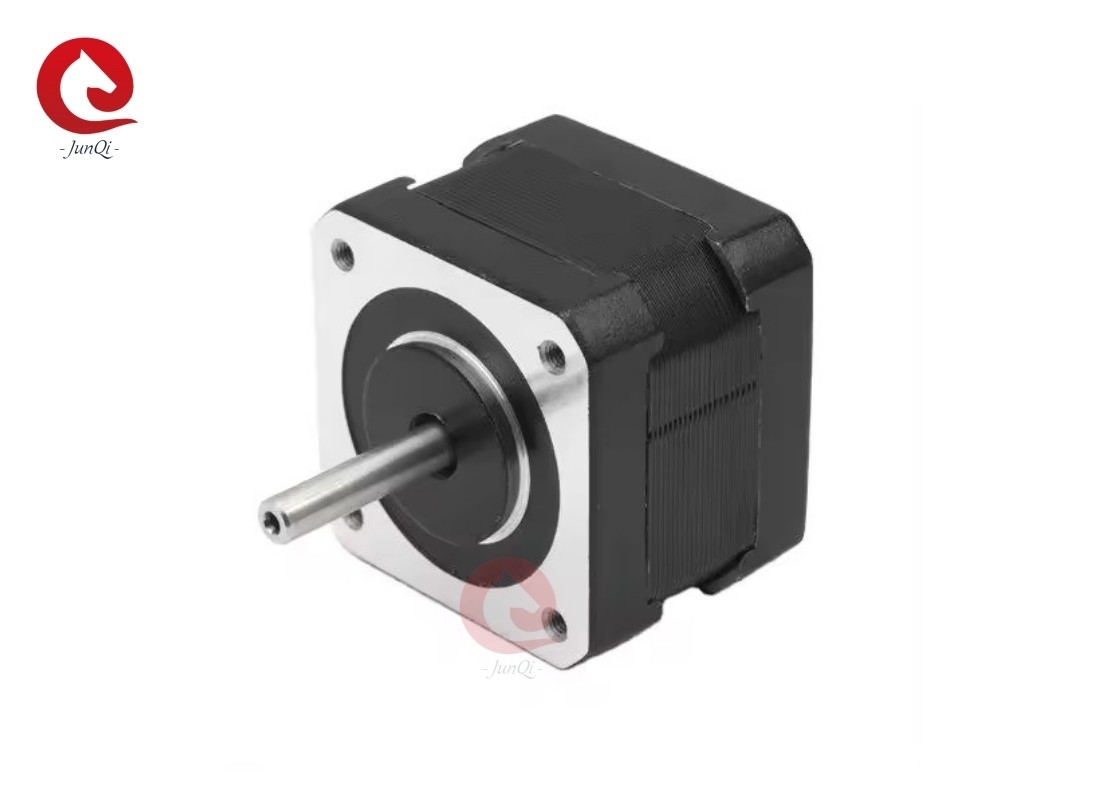

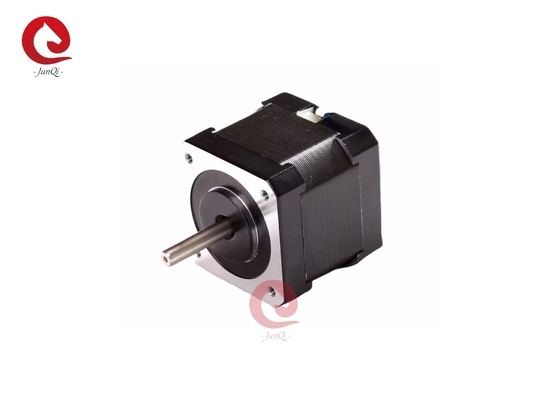

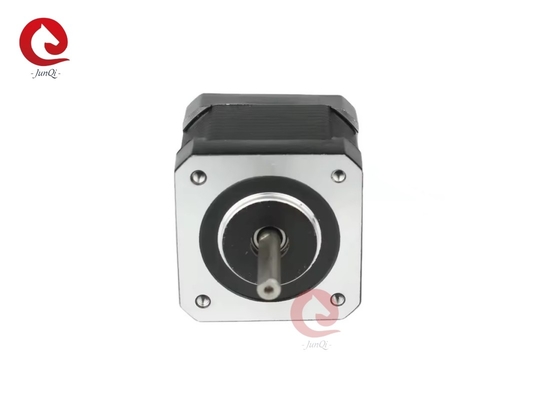

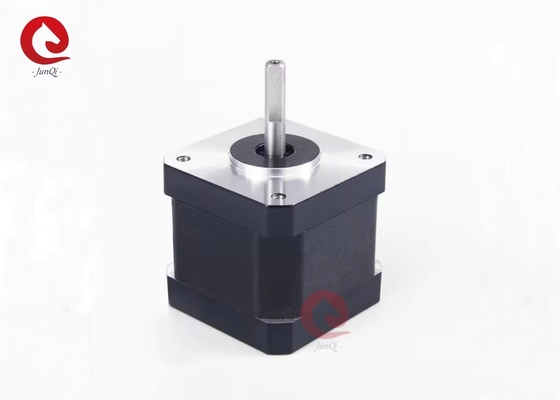

Nema17 Hybrid DC Step Motor JQ42HS40 4kg.cm Bipolar K40 Laser Stepper Motor
General Specification:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Insulation Resistance | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
Electrical Specifications:
| Model No | Step Angle (°) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (Kg.cm) |
Detent Torque (g.cm Max) |
Rotor Inertia (g.cm²) |
Motor Length (mm) |
Leads No. | Motor Weight (Kg) |
| JQ42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | 0.16 |
| JQ42HS34-0306 | 1.8 | 10.3 | 0.3 | 34.2 | 25.5 | 2.2 | 200 | 34 | 34 | 6 | 0.22 |
| JQ42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| JQ42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| JQ42HS40-0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| JQ42HS40-0806 | 1.8 | 6.0 | 0.8 | 7.5 | 6.7 | 2.8 | 220 | 54 | 40 | 6 | 0.28 |
| JQ42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| JQ42HS40-1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |
| JQ42HS48-0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | 0.38 |
| JQ42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 80 | 52 | 4 | 0.45 |
| JQ42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | 0.55 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||||
Mechanical Size:
Wiring Diagram:
Applications:
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System Bank Equipment: ATM machine
New Energy: Solar Tracking System
Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
Agriculture Machinery: Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills; Pruning Scissors; Robotic Milking Machines
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
