To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | CE, RoHS |
| Model Number: | JQ45BLW27-24V-6170A-G01 |
| Minimum Order Quantity: | 10pcs ( sample available) |
|---|---|
| Price: | USD30-USD60/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |
| Name: | BLDC Flat Motor | Model No.: | JQ45BLW27-24V-6170A-G01 |
|---|---|---|---|
| Type: | Outrotor BLDC Motor | Rated Voltage: | 24VDC |
| Rated Speed: | 4840rpm | Rated Torque: | 130mN.m |
| EMF: | 2.75rRMS/KRPM | Weight: | 160g |
| Highlight: | Flat Out Rotor BLDC Motor 24V,JQ45BLW27-24V-6170A-G01,27mm Flat Out Rotor BLDC Motor |
||

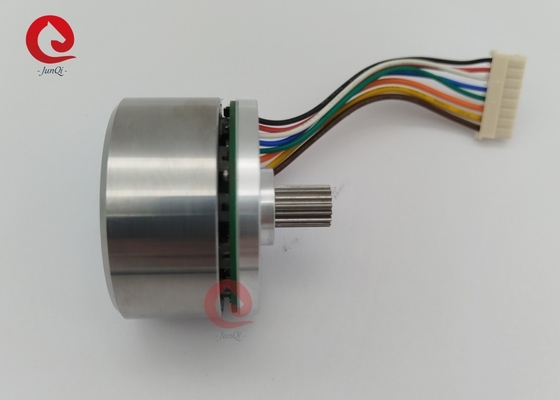

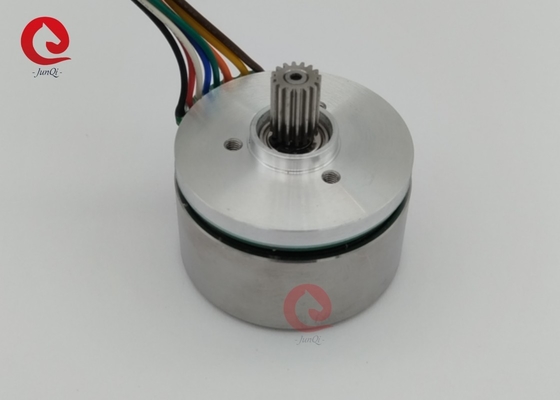

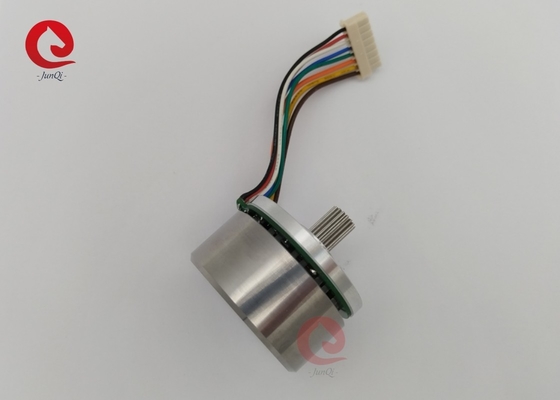

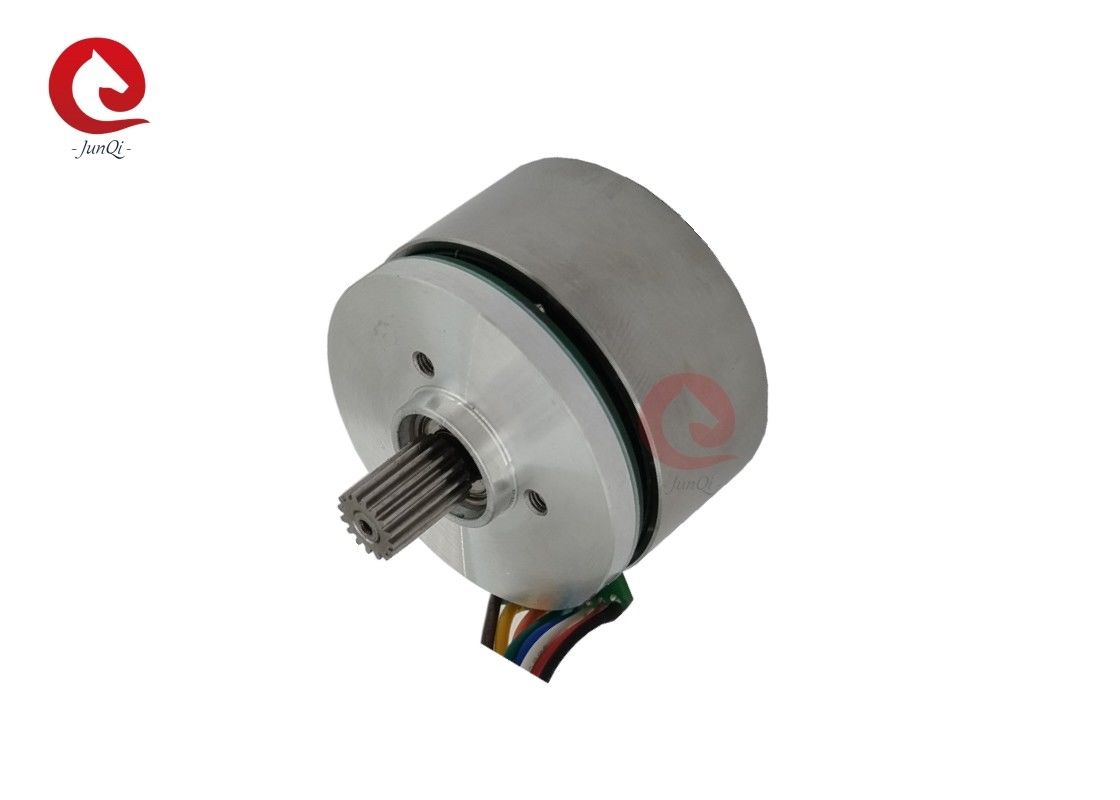

Brushless DC Flat Motors
The specific external rotor design of flat brushless DC motors gives these products an exceptional power to volume ratio, while keeping them very light and compact. Thanks to a high number of poles, these flat high torque DC motors offer very good control also at low speed. Our flat BLDC motor range offers a wide variety of sizes with reduced length.
Feature Summary:
1. Wide range of speed control and smooth torque output.
2. Excellent speed stability.
3. Small size, high power.
4. High efficiency, low temperature rise.
Technical Parameters:
| Item | JQ45BLW27-24V-6170A-G01 |
| Rated voltage | 24VDC |
| Rated Torque | 130mN.m |
| No load speed | 6100±10% rpm |
| No load current | ＜0.5A |
| Rated Speed | 4840rpm |
| Rated Current | 3.26A |
| Peak Current | 11A |
| Peak Torque | 390mN.m |
| Back EMF | 2.75Vrms/kRPM |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Line to Line Resistance | 0.56±10% ohms@20℃ |
| Line to Line Inductance | 0.27±20% mH@1kHz |
| Totor Inertia | 181g.cm² |
| Weight | 160g |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
