To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | CE, RoHs |
| Model Number: | JQ42STH33-1334A |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD7-USD35/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 10000pcs per month |
| Type: | Nema 17 Hybrid Stepper Motor | Model: | JQ42STH33-1334A |
|---|---|---|---|
| Step Angle: | 1.8° | Current/phase: | 1.33A |
| Holding Torque: | 0.22N.m | Motor Length: | 33mm |
| Lead Wires: | #6 | Weight: | 0.22kg |
| Highlight: | nema17 hybrid stepper motor,33mm hybrid stepper motor,3D Printer hybrid stepper motor |
||

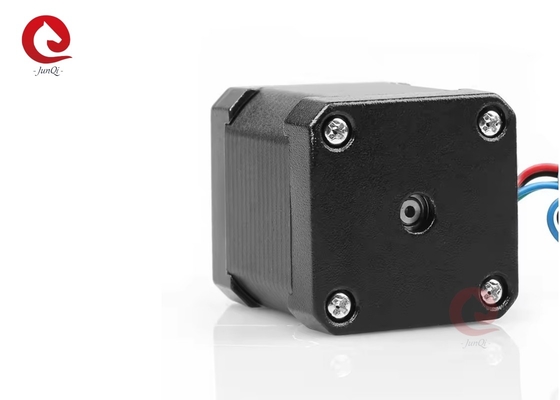

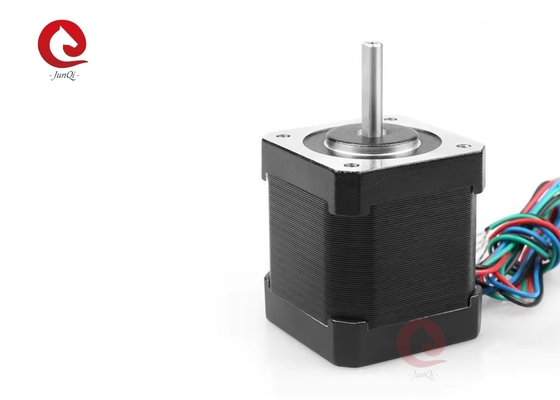

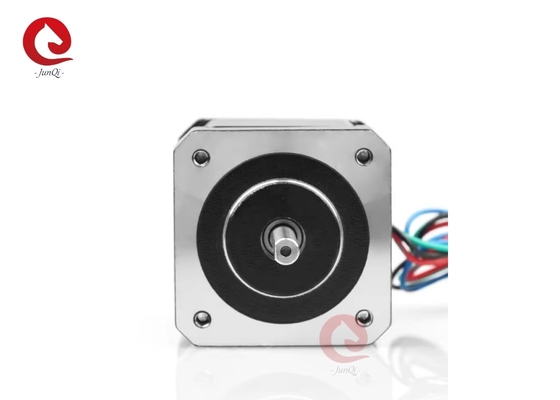

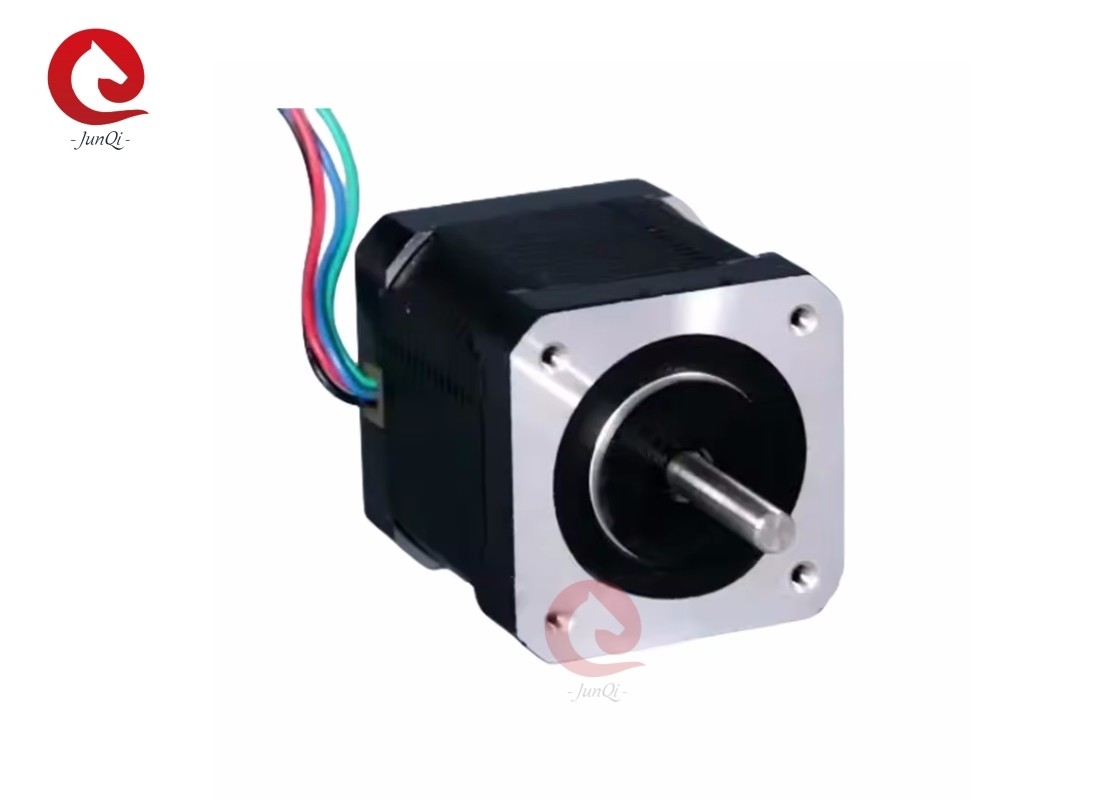

Nema17 1.8° High Torque Hybrid Stepper Motor
General Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N( 20mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Specifications:
| Model No. |
Current/ Phase |
Resistance/ Phase |
Inductance/ Phase |
Holding Torque |
Detent Torque |
#of Leads |
Rotor Inertia |
Length | Weight |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm² | mm | kg |
| JQ42STH25-0404A | 0.4 | 24 | 30 | 0.17 | 0.0075 | 4 | 20 | 26±1 | 0.15 |
| JQ42STH33-0956A | 0.95 | 4.2 | 2.5 | 0.16 | 0.012 | 6 | 35 | 33.5±1 | 0.22 |
| JQ42STH33-1334A | 1.33 | 2.1 | 2.5 | 0.22 | 0.012 | 4 | 35 | 33.5±1 | 0.22 |
| JQ42STH38-1206A | 1.2 | 3.3 | 3.2 | 0.26 | 0.015 | 6 | 54 | 39.5±1 | 0.28 |
| JQ42STH38-1684A | 1.68 | 1.65 | 3.2 | 0.36 | 0.015 | 4 | 54 | 39.5±1 | 0.28 |
| JQ42STH47-1206A | 1.2 | 3.3 | 2.8 | 0.317 | 0.02 | 6 | 68 | 47.5±1 | 0.35 |
| JQ42STH47-1684A | 1.68 | 1.65 | 2.8 | 0.44 | 0.02 | 4 | 68 | 47.5±1 | 0.35 |
| JQ42STH60-1206A | 1.2 | 6 | 7 | 0.56 | 0.028 | 6 | 102 | 60±1 | 0.5 |
Notes: The motor can be designed and manufactured with customized request.
Dimensions(mm):
Wiring Diagram:
Pull out torque curve:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
