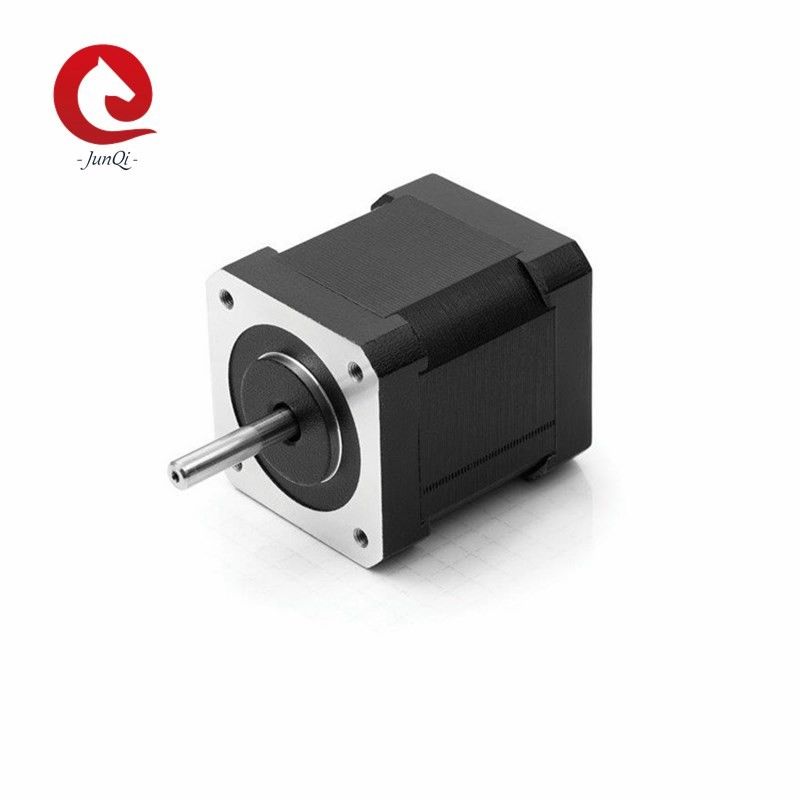

NEMA17 42mm BLDC Motor, JQ42BLS Series 24VDC, 4000RPM Max torque250mN.m brushless dc motor
One of the benefits of DC brushless motors with internal rotor, lies in their better dissipation of the generated heat. Thanks to the reduced air gap in brushless DC slotted motors, the flux density is higher and torque production is more effective and efficient. JUNQI International slotted BLDC motor range offers diameters from 22 to 86mm with rated torque up to 2.2Nm.
Features
1). High efficiency
2). Long operating life
3). Low noise
4). Good temperature rise
5). Good balance
6). The most available design for the optimized running.
Quick Details:
| Model |
Frame Size |
Rated Power W) |
Body Length (mm) |
Rated Voltage (VDC) |
Rated Torque (Nm) |
Rated Current (A) |
Rated Speed (RPM) |
| JQ42BLS01 | 42mm | 26 | 40.3 | 24 | 0.063 |
1.9 |
4000 |
| JQ42BLS02 | 42mm | 52.5 | 60.3 | 24 | 0.125 | 3.45 | 4000 |
| JQ42BLS03 | 42mm | 77.5 | 80.3 | 24 | 0.185 | 5 | 4000 |
| JQ42BLS04 | 42mm | 105 | 100.3 | 24 | 0.25 | 7.1 | 4000 |
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N( 10mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Type | Color | Functions |
|
UL1061 AWG28 |
Red | Vcc |
| Blue | U(Hu) | |
| Green | V(Hv) | |
| White | W(Hw) | |
| Black | GND | |
|
UL1061 AWG24 |
Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | JQ42BLS01 | JQ42BLS02 | JQ42BLS03 | JQ42BLS04 |
| Number of poles | 8 | 8 | 8 | 8 | |
| Number of Phase | 3 | 3 | 3 | 3 | |
| Rated Voltage | VDC | 24 | 24 | 24 | 24 |
| Rated Torque | mN.m | 62.5 | 125 | 185 | 250 |
|
Continuous stall torque |
mN.m | 75 | 150 | 220 | 300 |
| Rated Speed | RPM | 4000 | 4000 | 4000 | 4000 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | mN.m | 190 | 380 | 560 | 750 |
| Peak Current | A | 5.75 | 10.4 | 15.1 | 21.2 |
| Line to Line resistance | ohms@20℃ | 1.5 | 0.8 | 0.43 | 0.3 |
| Line to Line Inductance | mH | 2.1 | 1.2 | 0.71 | 0.5 |
| Torque Constant | N.m/A | 0.033 | 0.0366 | 0.037 | 0.0354 |
| Back EMF | Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| Rotor Inertia | g.cm2 | 24 | 48 | 72 | 96 |
| Motor Length | mm | 40.3 | 60.3 | 80.3 | 100.3 |
| Weight | kg | 0.3 | 0.45 | 0.65 | 0.80 |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Our motor products contain range:
Application:
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
Bank Equipment: ATM machine
New Energy: Solar Tracking System
Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
Agriculture Machinery: Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills; Pruning Scissors; Robotic Milking Machines
