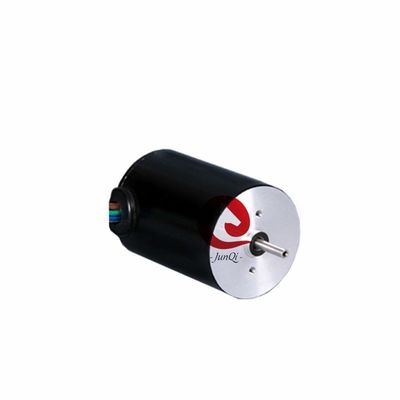

JQ33BL Series Inner Rotor Brushless DC motor
Quick Details:
| Model |
Frame Size |
Rated Power W) |
Body Length (mm) |
Rated Voltage (VDC) |
Rated Torque (Nm) |
Rated Current (A) |
Rated Speed (RPM) |
| JQ33BL80-48V-10040AS | 33mm | 40 | 80 | 48 | 0.04 |
1.45 |
4000 |
| JQ33BL80-24V-7840A-S | 33mm | 40 | 80 | 24 | 0.05 | 0.9 | 10000 |
| JQ33BL38-24V-3007A | 33mm | 7 | 38 | 24 | 0.022 | 0.45 | 8000 |
Features:
1. Wide speed range, Flat torque
2.Excellent Speed Stability
3. Compact and High Power
4. High Efficiency and Energy-Saving.
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 10N( 10mm from the flange) |
| Max.Axial Force | 2N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Type | Color | Functions |
|
UL1007 AWG28 |
Yellow | Vcc |
| Blue | U(Hu) | |
| Orange | V(Hv) | |
| Brown | W(Hw) | |
| White | GND | |
|
UL1007 AWG26 |
Green | Phase U |
| Red | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | JQ33BL38-24V-3007A | JQ33BL80-24V-7840A-S | JQ33BL80-48V-10040AS |
| Number of poles | 4 | 4 | 4 | |
| Number of Phase | 3 | 3 | 3 | |
| Rated Voltage | VDC | 24 | 24 | 48 |
| Rated Torque | mN.m | 22 | 50 | 40 |
|
Continuous stall torque |
mN.m | 26 | 60 | 48 |
| Rated Speed | RPM | 3000 | 7800 | 10000 |
| Rated Power | W | 7 | 40 | 40 |
| Peak Torque | mN.m | 66 | 150 | 120 |
| Peak Current | A | 1.5 | 5.6 | 2.9 |
| Line to Line resistance | ohms@20℃ | 14.2 | 0.86 | 2.3 |
| Line to Line Inductance | mH | 7 | 0.55 | 1.45 |
| Torque Constant | nN.m/A | 46.3 | 27 | 41.8 |
| Back EMF | Vrms/KRPM | 3.43 | 2.0 | 3.1 |
| Rotor Inertia | g.cm2 | 7.95 | 23.55 | 23.55 |
| Motor Length | mm | 38 | 80 | 80 |
| Weight | kg | 0.085 | 0.2 | 0.2 |
**Notes: The motor can be designed &manufactured with customized request!!
Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
Motor Applications:
Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Engraving machine,Medical apparatus,ATM machine,Milling machine,Sewing machine, ect.
